For all computed tomography systems, the Food and Drug Administration recommends measuring the CT Dose Index (CTDI). Each section of the CIRS CT Dose Phantoms can provide separate dose information.  The user can also measure maximum, minimum and mid-range values of the nominal tomographic section thickness when performing dose profile measurements.

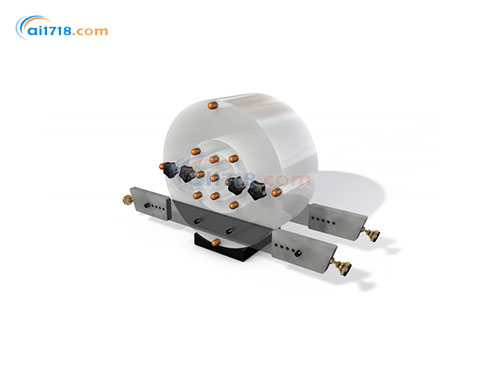

Each phantom consists of a set of nesting 15 cm thick solid PMMA disks measuring 16 cm (head) and 32 cm (body) in diameter.  The adult head disk is also suitable for pediatric body measurements. The Model 007A includes a third nesting disk measuring 10 cm in diameter for pediatric head measurements. Handles on the body and head are provided for ease in handling and maneuverability.

Through holes measuring 1.31 cm in diameter will accommodate standard CT probes. Acrylic rods are provided to plug the holes when not in use. The acrylic rods are machined to receive 1 mm diameter TLD rods.

The Model 007 & 007A are manufactured to comply with the FDA’s performance standard, 21 CFR 1020.33 that details the measurement requirements.

Features：

?Abdominal, Adult Head, Pediatric Head configurations

?PMMA disks and plugs with density of 1.19 g/cc

?13.1 mm diameter holes sized for standard CT Dose probes

?Nesting PMMA disks minimize storage space

Compatible with all CT scanners：

An optional Support Bracket, Model 007-01, can be used to suspend the CT Dose Phantoms above the imaging couch and align it along the axis of X-ray tube rotation.  This enables the phantom to be used to assess CT dose in helical mode or any mode that requires the extended travel of the imaging couch or a wide beam.  This set-up might be used to address the dosimetry approach described in TG111.  An additional application of the support bracket is to provide a body to simulate continous scatter radiation from the patient during helical CT for dose safety measurements inside and outside the exam room.

• 1、技術溝通，初步判斷問題 電話與客戶進行初步溝通、了解并初步判斷儀器
  所出現的故障問題。
• 2、簽訂維修協議 由我公司向客戶發送儀器維修協議，客戶需如實
  填寫內容并回傳以便我司對儀器做進一步判斷。
• 3、客戶郵寄儀器 客戶可按照我司地址郵寄儀器，并將快遞單拍、
  照發送至您的專屬客服進行備案。
• 4、詳細診斷機器故障 我司收到郵寄儀器后會對郵寄的儀器進行拍照、
  并開箱檢驗，對儀器做進一步故障判斷。
• 5、支付維修費用 如客戶儀器在保修期內，我司不收取任何維修費，
  如客戶儀器在保修期外，我司會適當收取維修費。
• 6、郵寄儀器給客戶 我司將維修好的儀器按客戶地址進行拍照并郵寄，自此
  雖維修協議終止，但我司將提供終身免費答疑及技術指導。

專業從事儀器儀表檢修9年，部分可提供服務的產品型號如下：
