美國CIRS　610 CT性能檢測模體

型號：610 CT性能檢測模體

品牌：美國CIRS

會員價格：面議

聯系方式： 010-68940148

在線解答：

立即咨詢

美國CIRS

Computerized Imaging Reference Systems, Incorporated (CIRS) 公司在1983年以改進現有組織模擬方法和計算機斷層掃描提供定量的參考標準為目標成立了。如今，CIRS被認為是全球領先的等效幻影，放療，醫學成像模擬器以及程序培訓...[查看更多]

瀏覽過此產品的用戶最終購買了

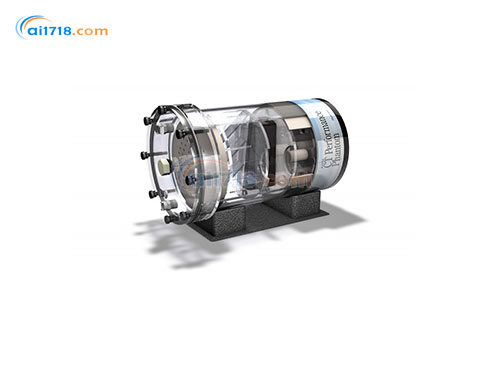

The CIRS Model 610 AAPM CT Performance Phantom offers the user a single test object that measures ten distinct CT performance parameters. The phantom design is based on the guidelines presented in Report #1 of the American Association of Physicists in Medicine Task Force on CT Scanner Phantoms. The goals of report #1 were to “(1) define ‘performance’ of a CT scanner and (2) describe methods of performance testing through utilization of particular phantoms.”

A CT number linearity insert, high contrast resolution insert and slice width insert are housed in an 8.5 “ diameter PMMA water tank with quick disconnect valves for ease of filling and draining between use. Also included is a 0.25” bone equivalent ring that can be fit over the inserts to evaluate the effects of beam hardening.

A contrast test object is adhered to the bottom of the tank that includes two rows of cavities from 1 to 0.125” diameter. The cavities can be filled with various solutions for contrast evaluation. An aluminum alignment insert is incorporated in the lid of the tank and can be interchanged with a polystyrene TLD insert for dose measurements. A user’s manual, holding cradle, filling tubes and other accessories are included.

Measurement Capability：

?Noise

?Size Independence

?Sensitivity / Detectability

?Radiation Dose

?Mechanical Alignment

?Spatial Uniformity

?Beam Hardening

?HU Linearity

?Slice Thickness

?Spatial Resolution and line spread function
